hlt0p010 series(120w)-加拿大28

product features

· 120w 4ft led linear fixture with high ppe efficiency.

· samsung full spectrum white light, 660nm plant red light, and 730nm infrared for

enhanced yield.

· premium dimmable ul-listed driver supporting wide input voltage of ac120-277v.

· suitable for downward lighting configurations.

· end-to-end cable connectivity supporting up to 20 fixtures.

· uniform light output distribution .

· 0-10v dimming capability via rj11 connection.

· ip65 rated for water and dust resistance.

· easy and quick installation.

· 5-year manufacturer's warranty.

installation

· disconnect the power to the luminaire.

· take out and locate two stands. install the clips at top of both stands.

· put the fixture on the two stands and use the clips to hold the fixture,

the space is suggested as 80cm between two stands.

· connect the daisy chain cord on both sides the fixtures, the max

series connection quantities can be up to 20 pcs fixtures as a group

at 277v.

· connect the power cable with the first luminaire in the group if the

rj11 cables are connected within the group.

· an external dimmer is optional to control or dim the luminaire in the

group

application

· indoor grow for hemp,cannabis,marijuana;hobby&commercial grow.

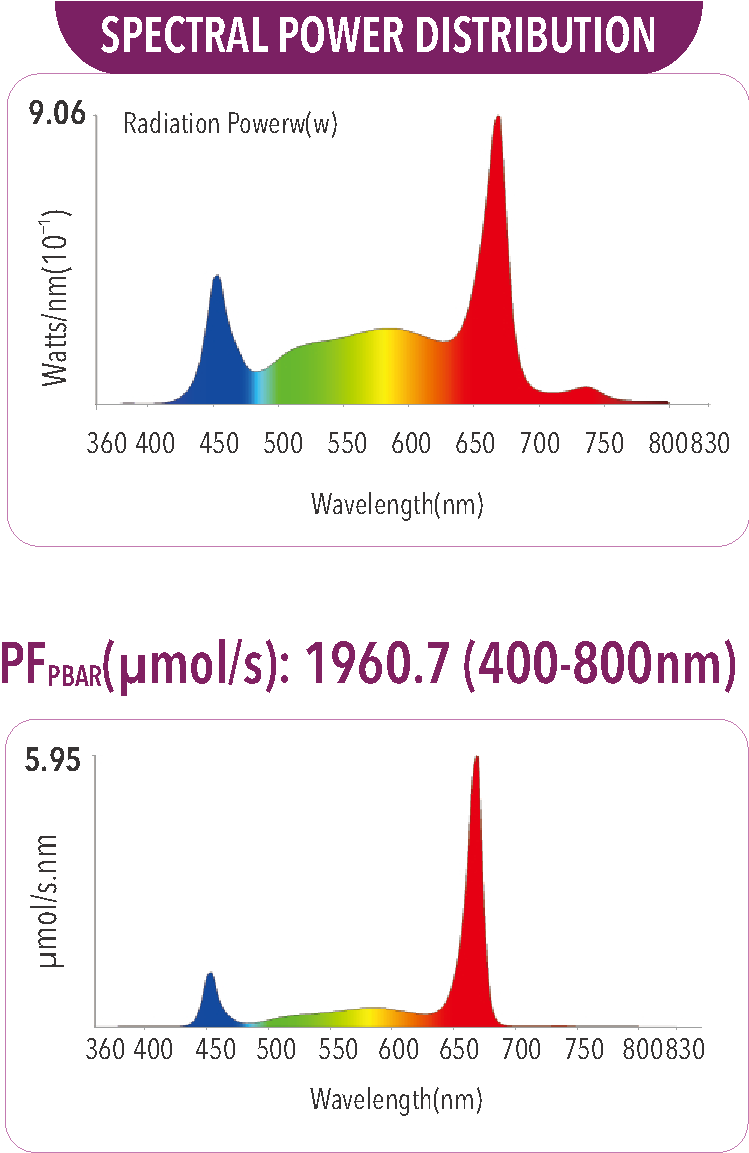

spectral power distribution

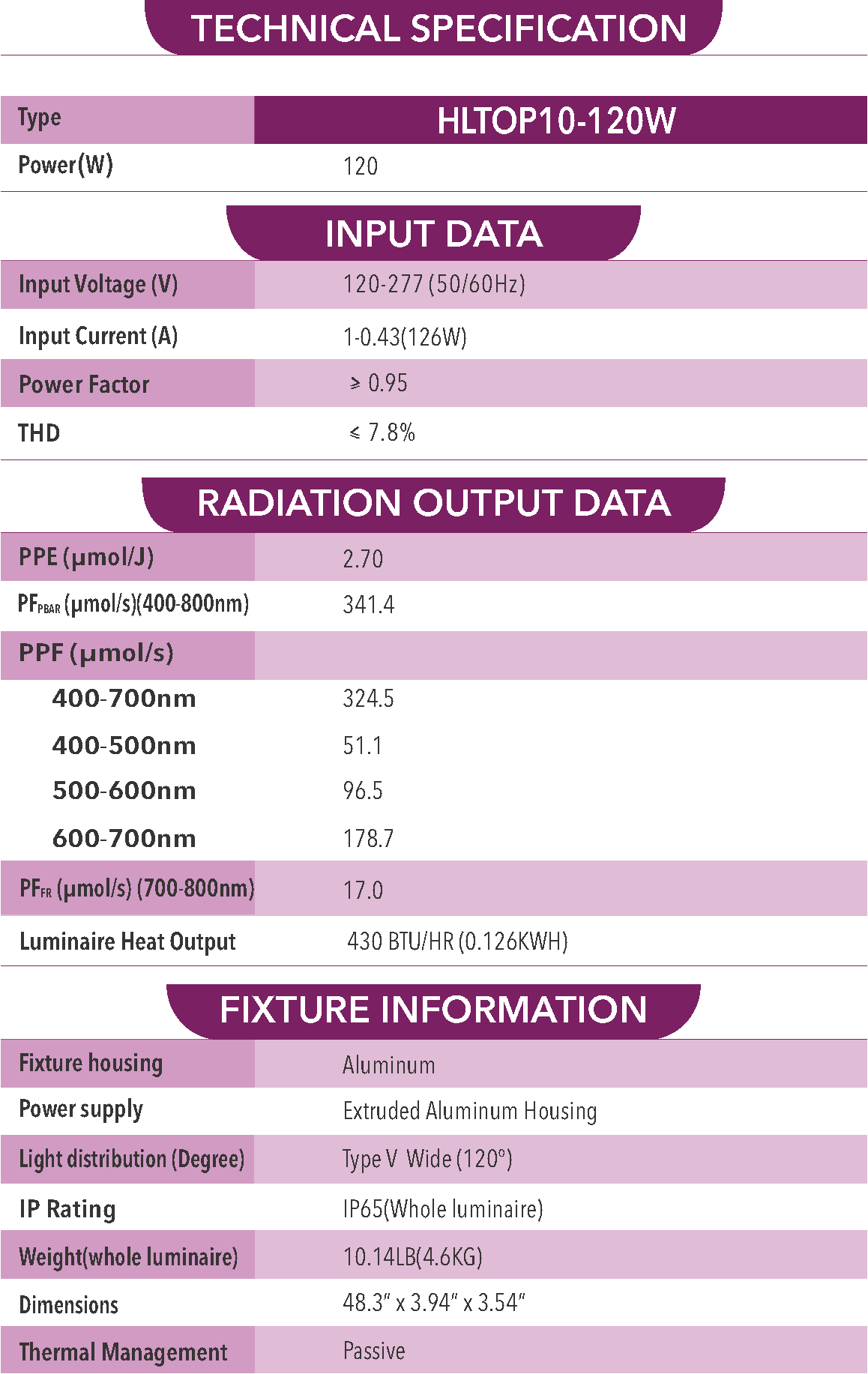

lamp information

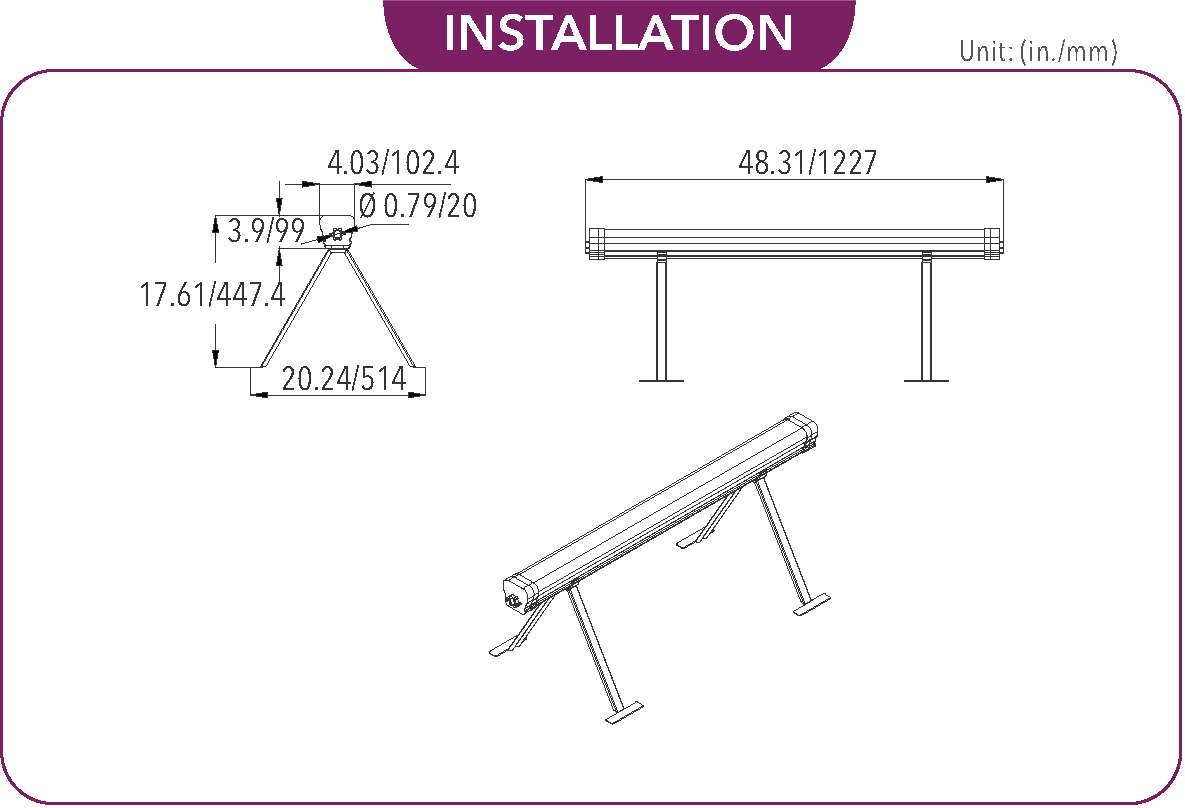

dimensional drawing

lamp information
